Pad ProcessForming

Linear Automatic forming machine

Product Specifications
Capacity Max 220 Pcs /Hr
Press Capacity Pre-Forming 60 Ton /1 Cavity , Forming 180 Ton / 4 Cavity x 6 Press.
Type of Vehicle Applied Min 80(L)x40(W) ~ Max 160(L)x70(W)
Power Capacity 140Kw
Process Drying & weighing of friction material (2 type) → Pre-forming → Gantry (Pre-formed product input, releasing agent, Brush, formed product Discharging ) → forming (6P) → Thickness inspection → Trimming
Characteristic Friction materials Drying , equal pressure per cavity (Balance Cylinder), Full automatic

This machine implement the process of weighing&forming. 1st dried and weighed friction mateiral with B/plate are formed as the process of pre-forming. After the pre-forming, 2nd press forming is operated and the formed product is loaded automatically. the machine is consisted of 6 forming press as one cell. one worker is enough to operate 4cells(24 press), due to full automation.

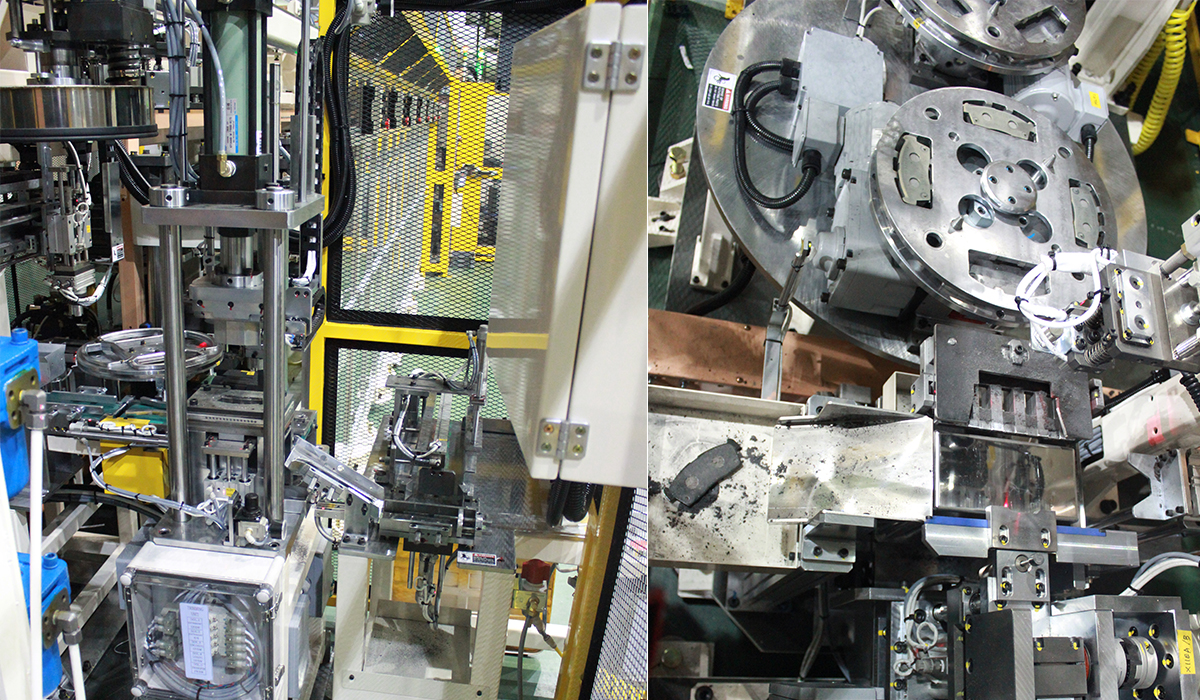

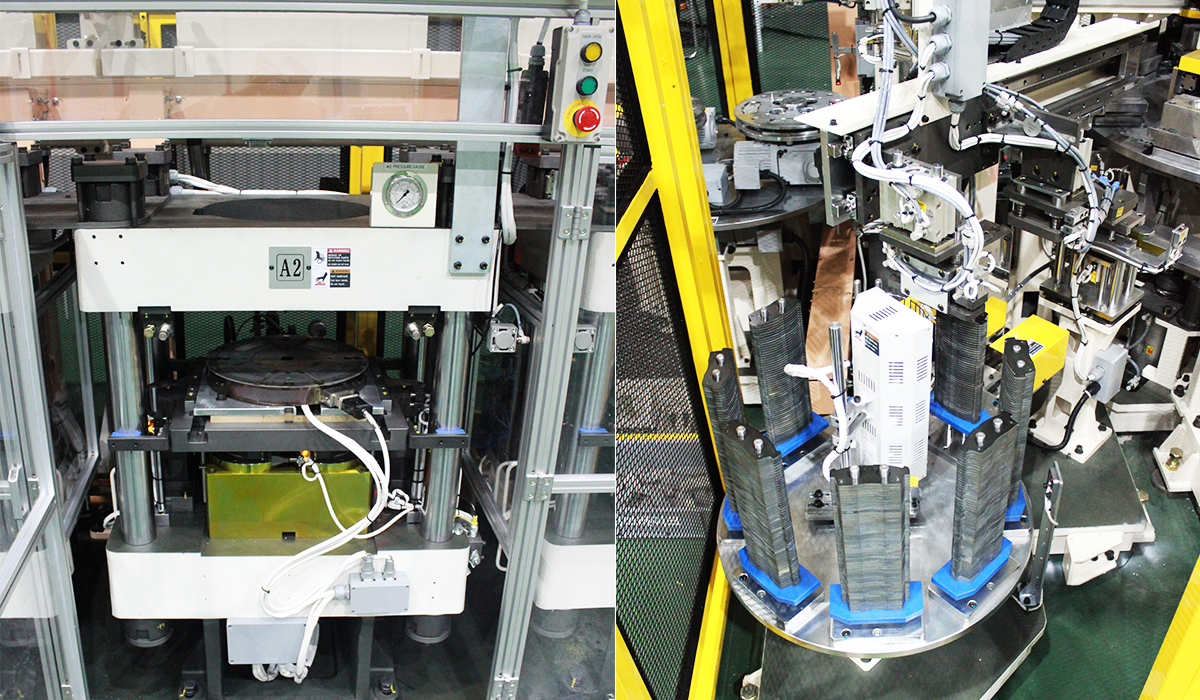

Product Image
