Pad ProcessDrilling

Back Plate 2-hole Punching Machine

Product Specifications
Capacity Max 200 Pcs /HR
Specification B/Plate Loading Quantity : 180 Pcs , 2 Hole Angle 35-65o. Selfeeder Type, Touch Control.
Power Capacity 5kw
Process B/Plate loading (Manual) → B/PLATE transfer → Hole Drilling → Hole inspection → Discharging & Loading
Characteristic drilling 2_Holes simultaneously, drill breakage inspection, Hole (Included/Excluded) inspection and depth inspection

This equipment is designed to make a hole or holes on the side of B/plate for the use of attaching a sensor or sensors in the process of manufacturing brake pads. it is possible to inspect formed holes after drilling.

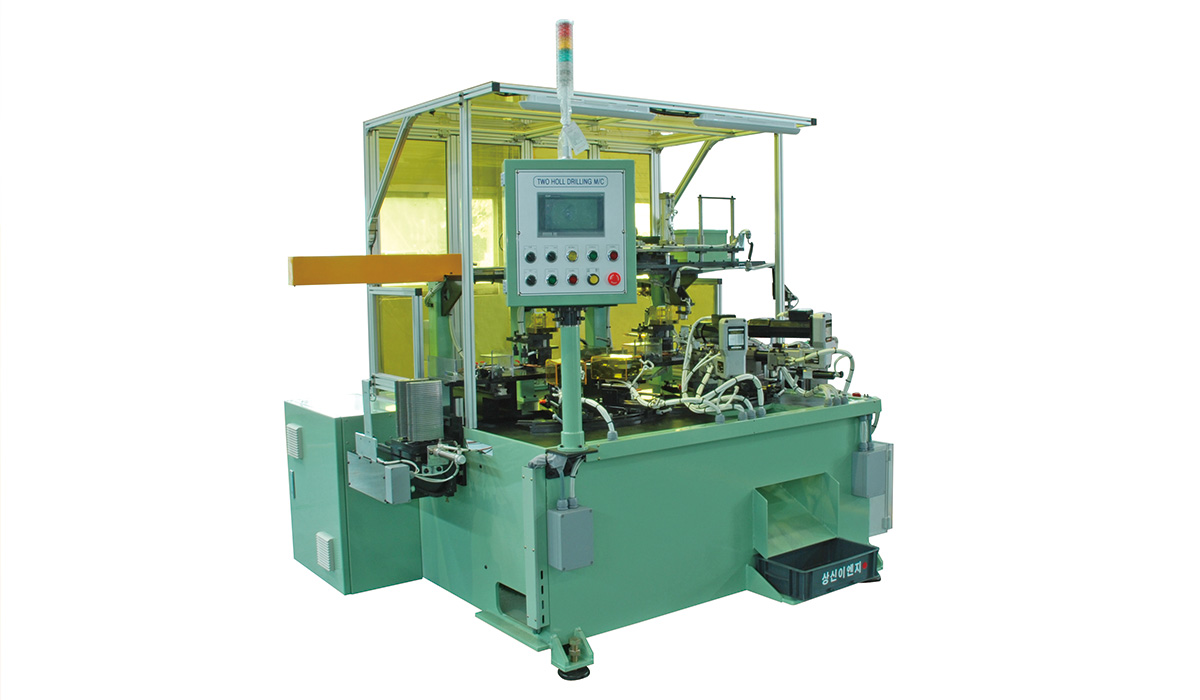

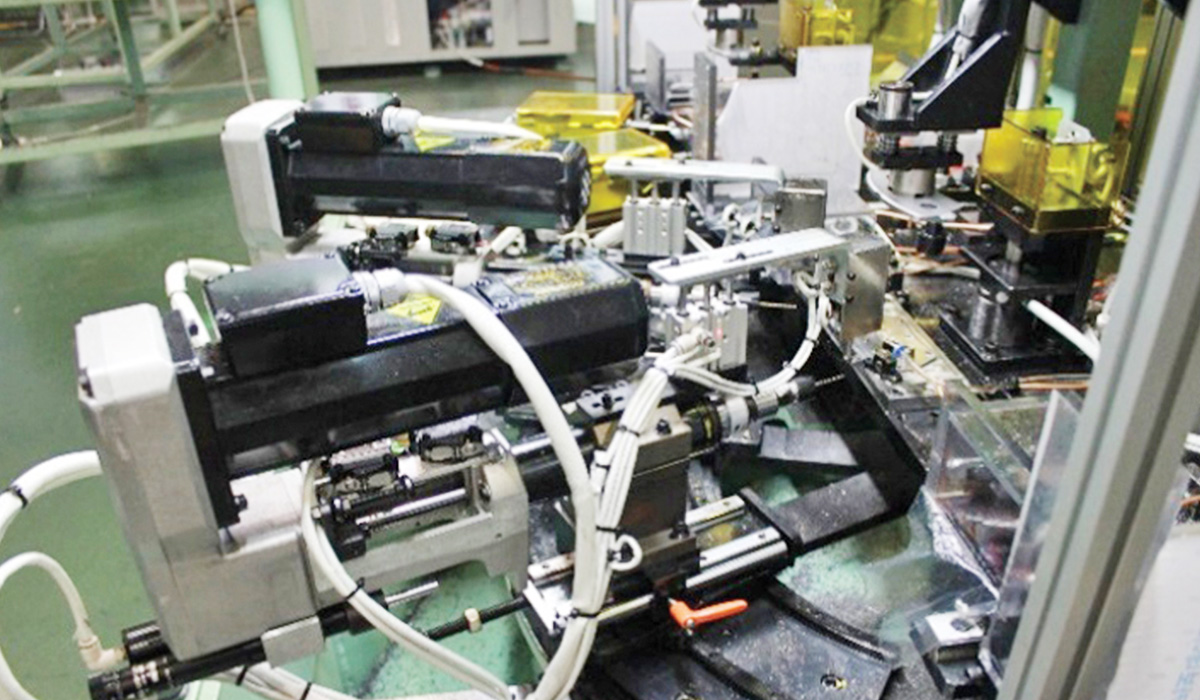

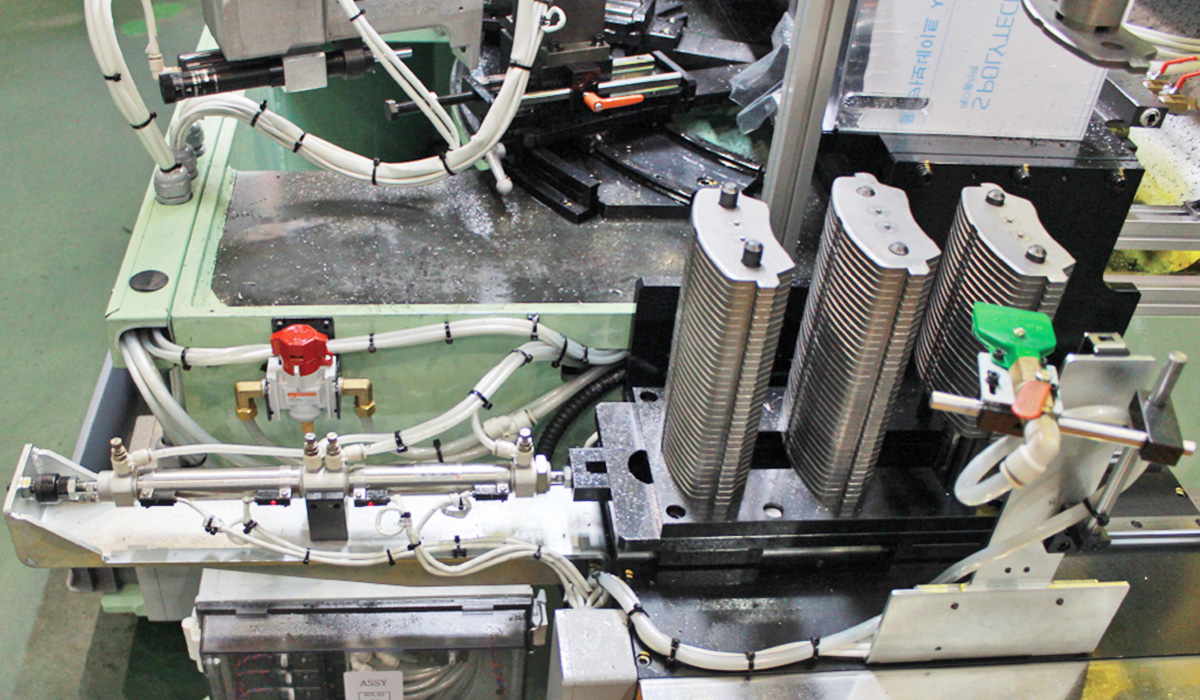

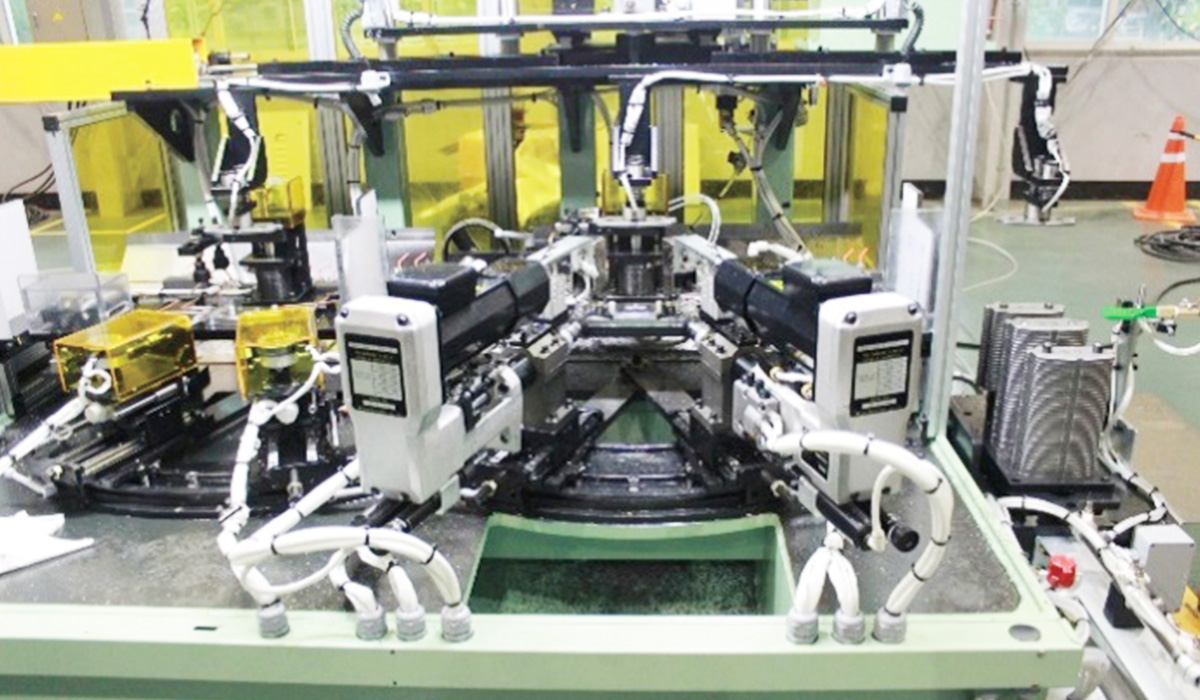

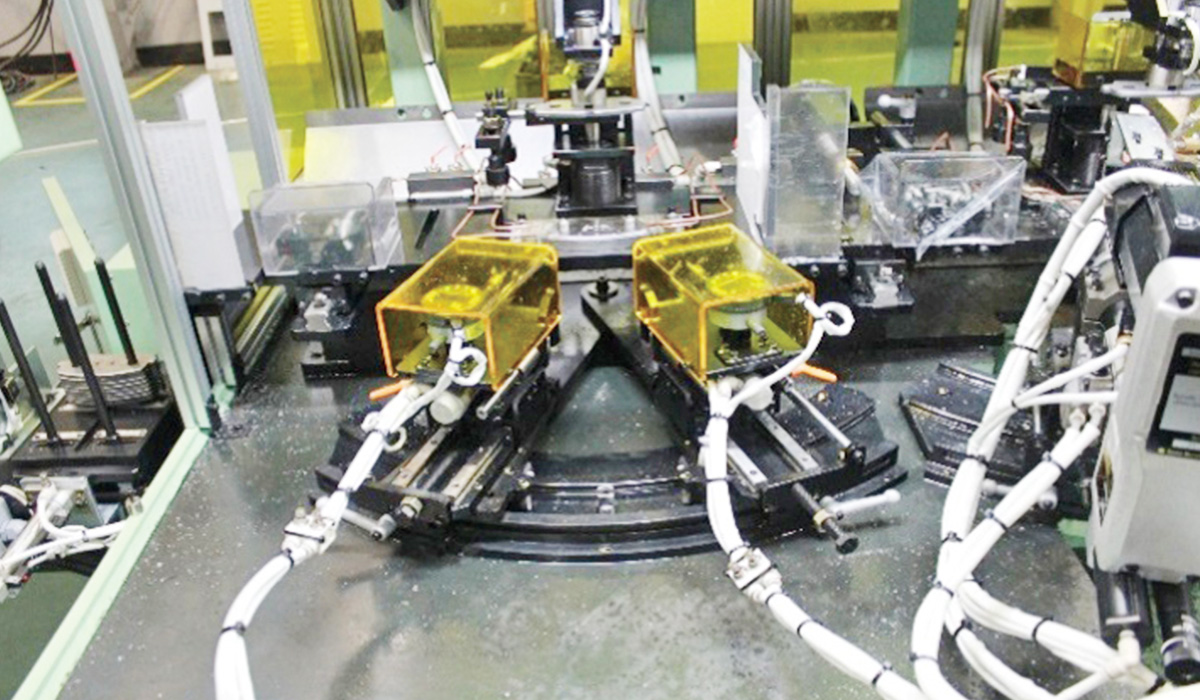

Product Image
