Accumulated technologies and differentiation of dedicated manufacturing system

Pad ProcessCompletion

Multiple Grinding machine(Ratchet Type)

Product Specifications
Capacity 2,000 Pcs/Hr(Max 2,400 Pcs/Hr)
Specification Grooving 5~7.5KW, Chamfer 5~7.5KW, Grindgin 7.5~11KW
Type of Vehicle Applied Min 80(L)x40(W) ~ Max 170(L)x70(W)
Control PLC(Mitsubishi)
Process Product loading → Grooving → 1st Grinding (roughing) → Chamfer → 2nd Grinding (finishing) → Product demagnetic → Reversal of product → Air Blower → Discharging
Characteristic Diagonal Grooving, Radial Chamfer, J-Cut

This equipment is designed to implement the process of complete pad line to produce brake pad. automatically Grooving, Chamfer, Grinding (1st and 2nd) work is continuously opereated by utilizing electomagnet and rail. Just simple control is requried to change various models. this machine is available for various models with mass production.

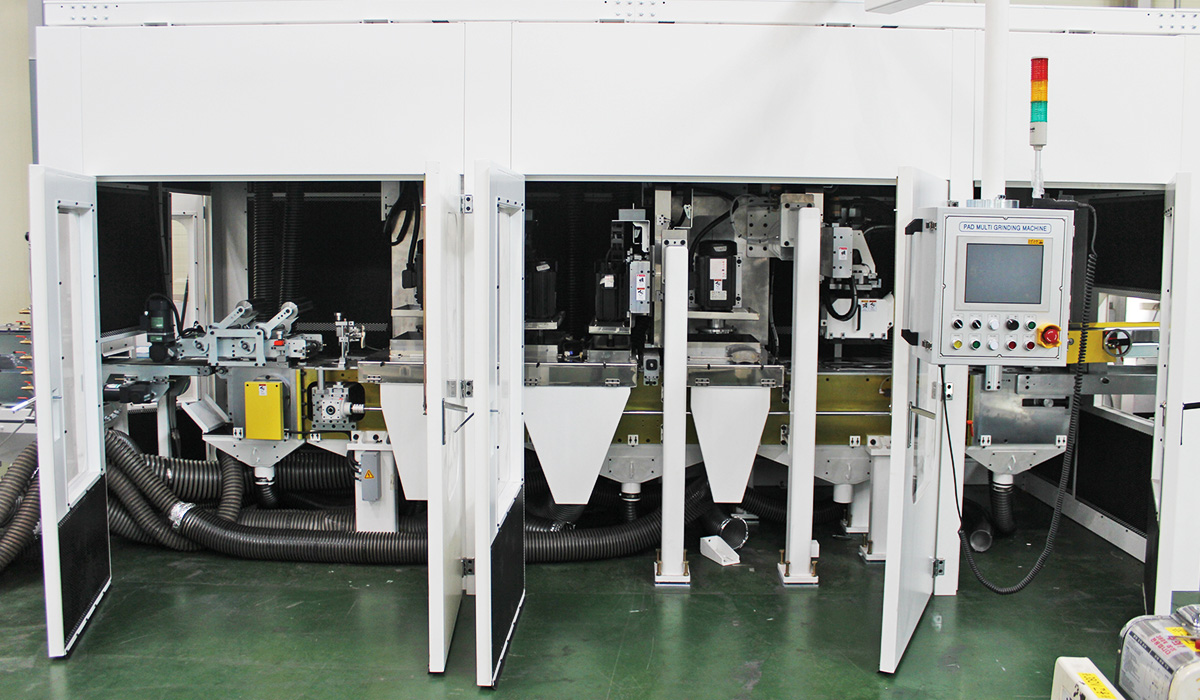

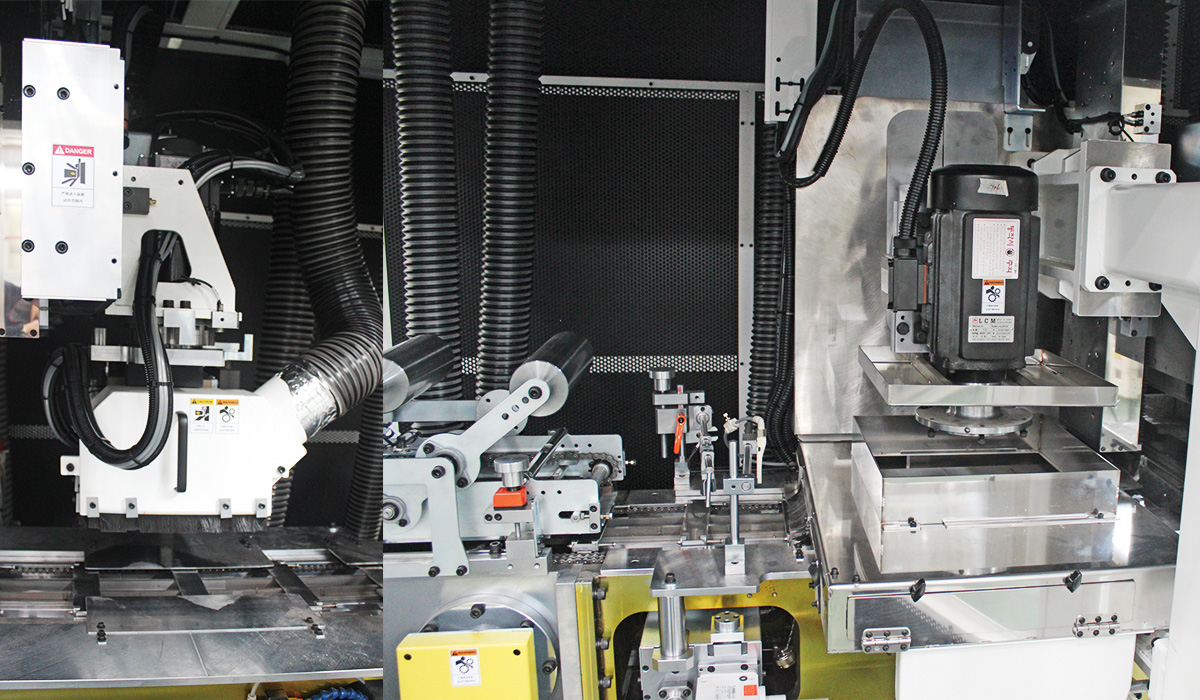

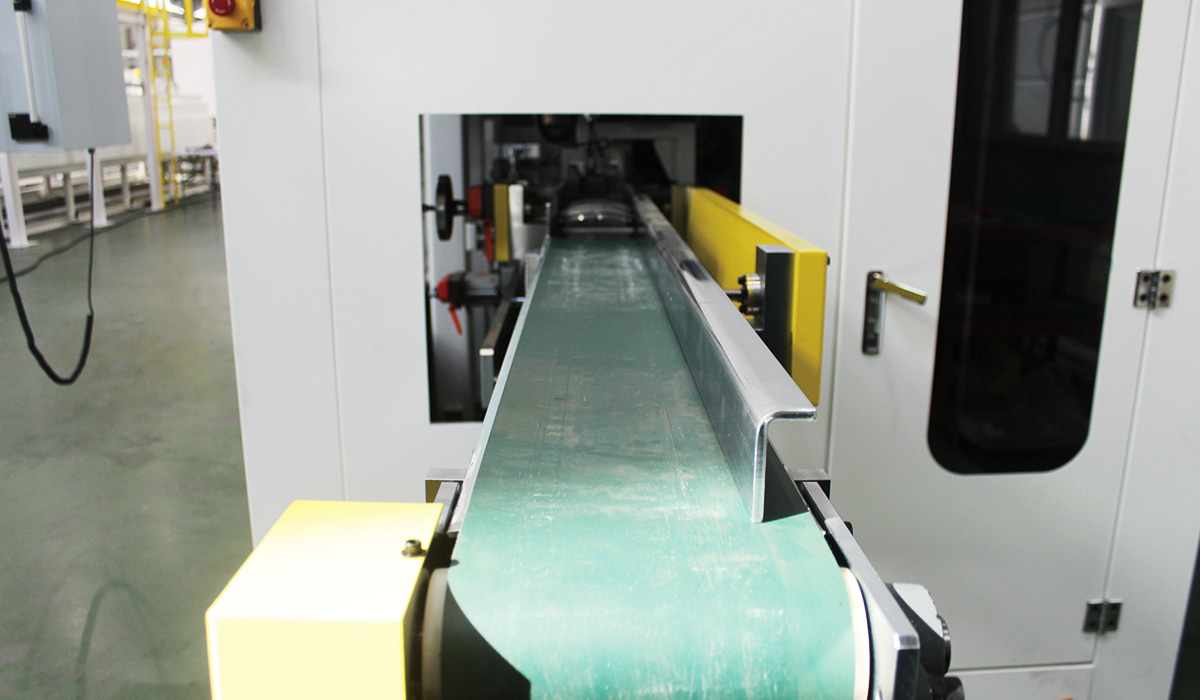

Product Image
