Small Brake Shoe Manufacturing ProcessSheet Completion Process

Sheet Completion Process

Product Specifications
Capacity Max 900Pcs/Hr
Type of vehicle applied Internal R 78~140mm, W 20~65mm, T 2.5~10mm
Control PLC(Mitsubishi / LS)
Process Cutting → Internal grinding → External grinding → Pasting # 1 → Marking # 1 → Pasting # 2 → Marking # 2 → Chamfering → Discharging
Equipment Components One Cutting Machine, One Internal & external Grainding Machine , One Marking Machine, one Chamfering Machine

This production line consists of cutting, grinding, marking and chamfering process. And it is a machine designed to produce molded sheet linings automatically from cutting to chamfering.

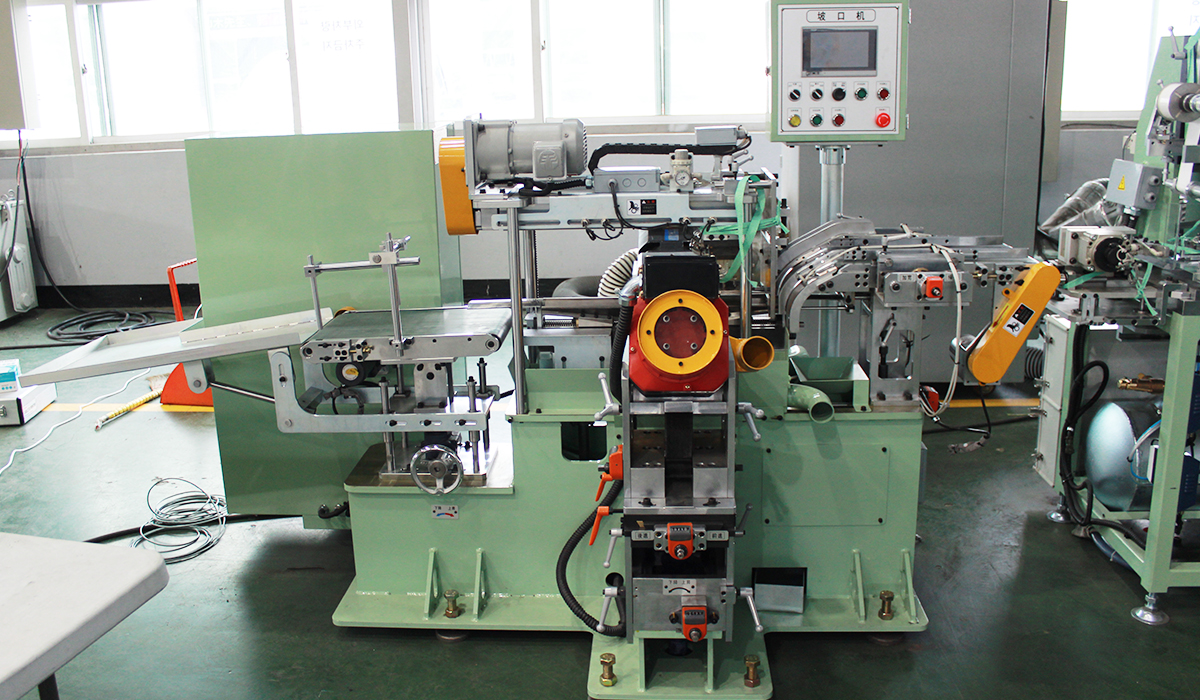

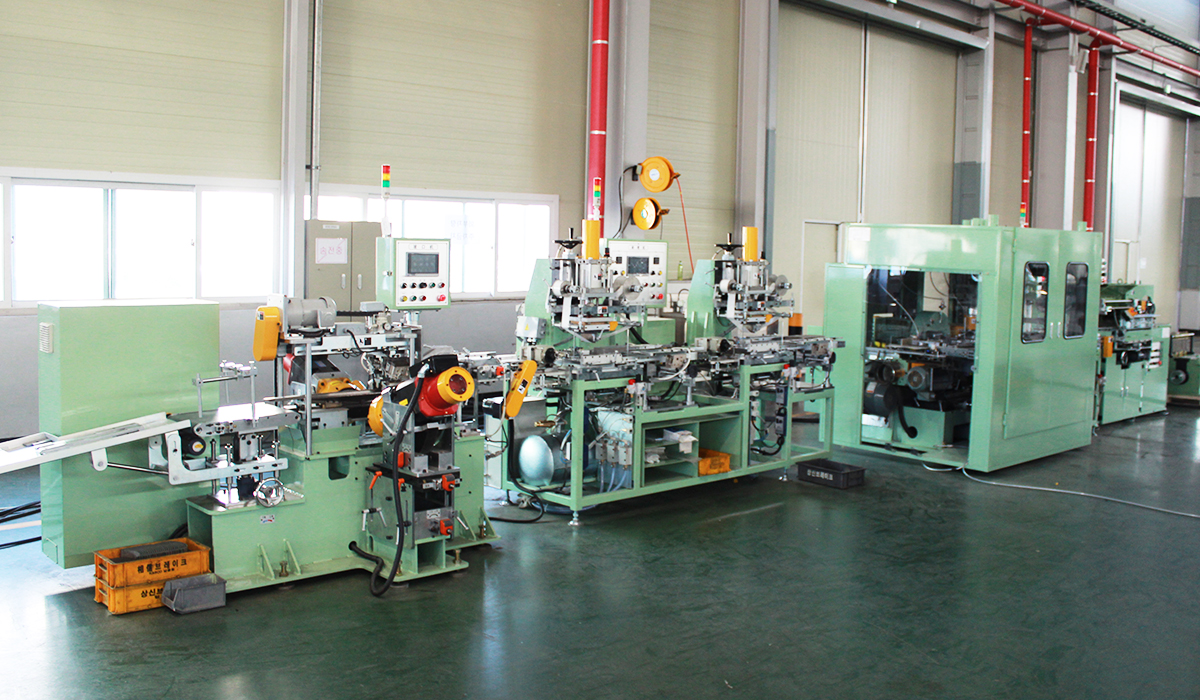

Product Image
