Pad ProcessForming

Direct Input Semi-Auto press(Large Pad)

Product Specifications
Capacity Max 60 Pcs/ Hr ( Cycle 5 / Hr )
Press Capacity 180 Ton /2 Cavity * 6 Press
Power Capacity 124KW
Process Friction Materials Weighing (2 types) → Gantry(friction material supply + Leveling + Tamping) → Back Plate loading (Manual) → Froming (6P)
Characteristic Large size Pad Forming , Possible to carry out various products (Max. 6 models), equal pressure per cavity (Balance Cylinder)

This equipment is suitable for small quantity batch production. it is consisted of 6 forming press as one cell. one worker is enough to operate the machine, due to the seperation of process such as automatic parts and semi-automatic parts. It is possible to manage various condition and implement small quantitiy batch production (Max. 6 models, But Same friction material should be used)

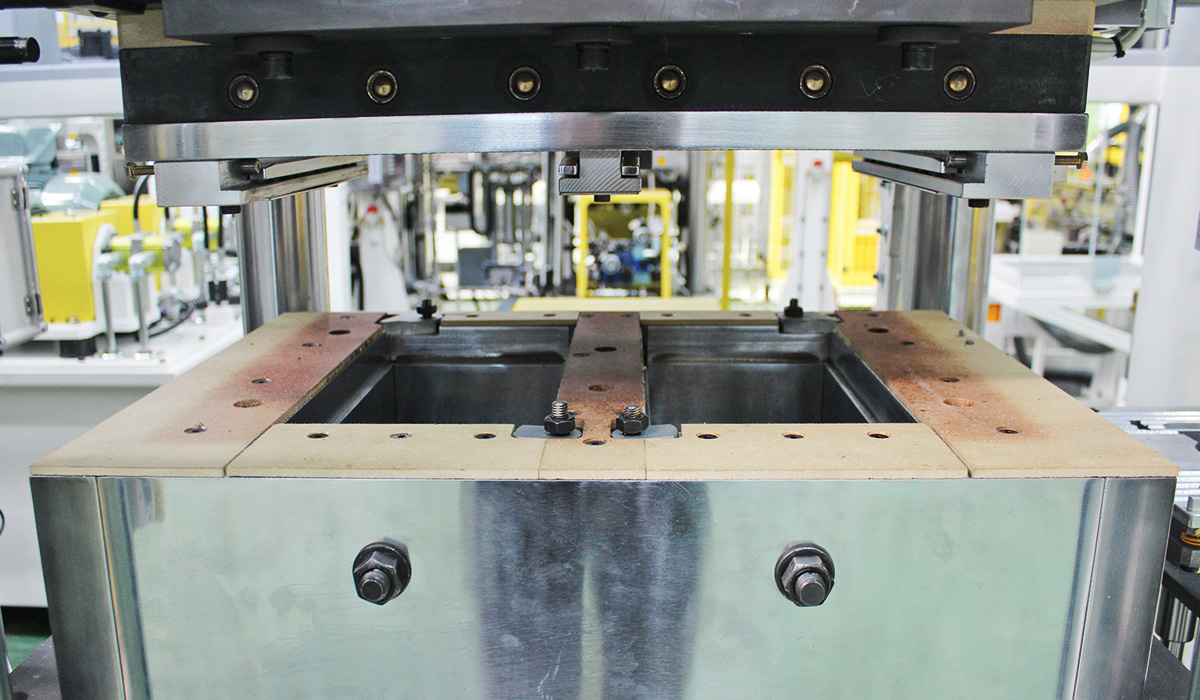

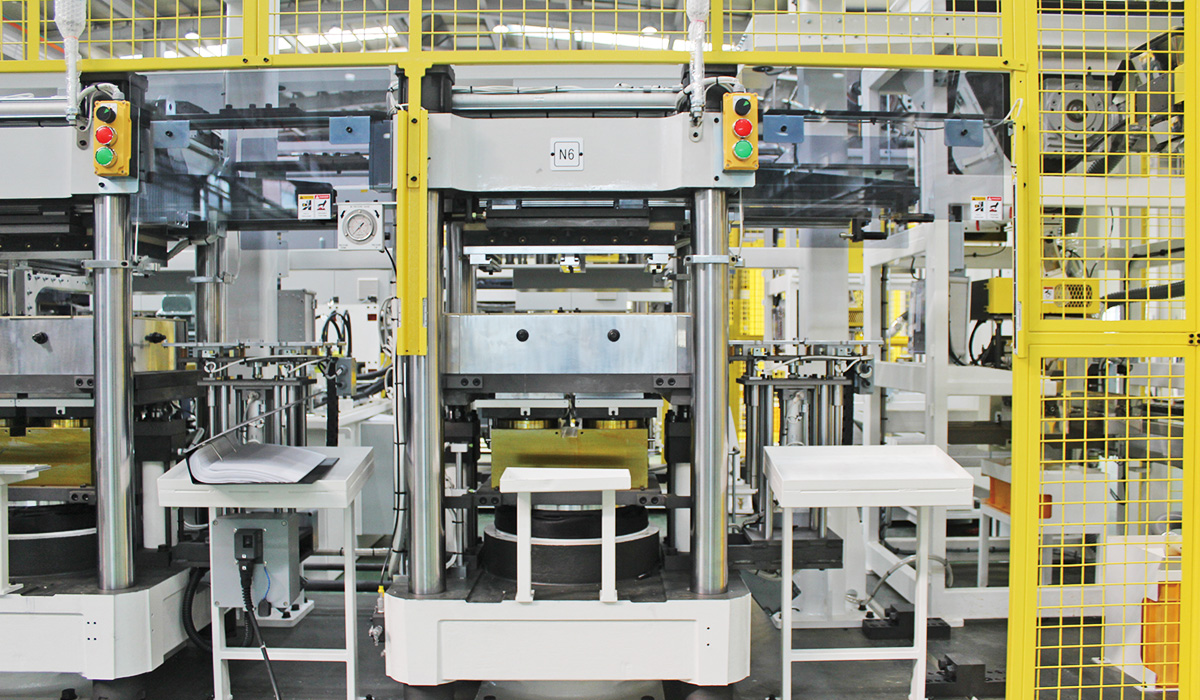

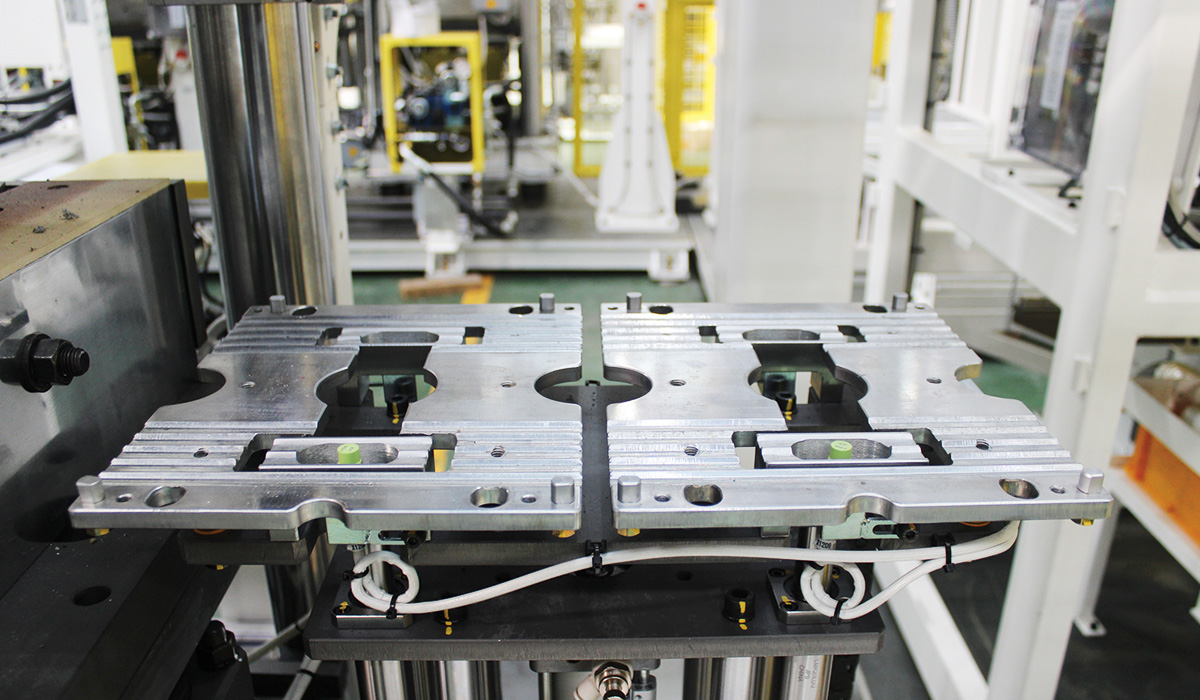

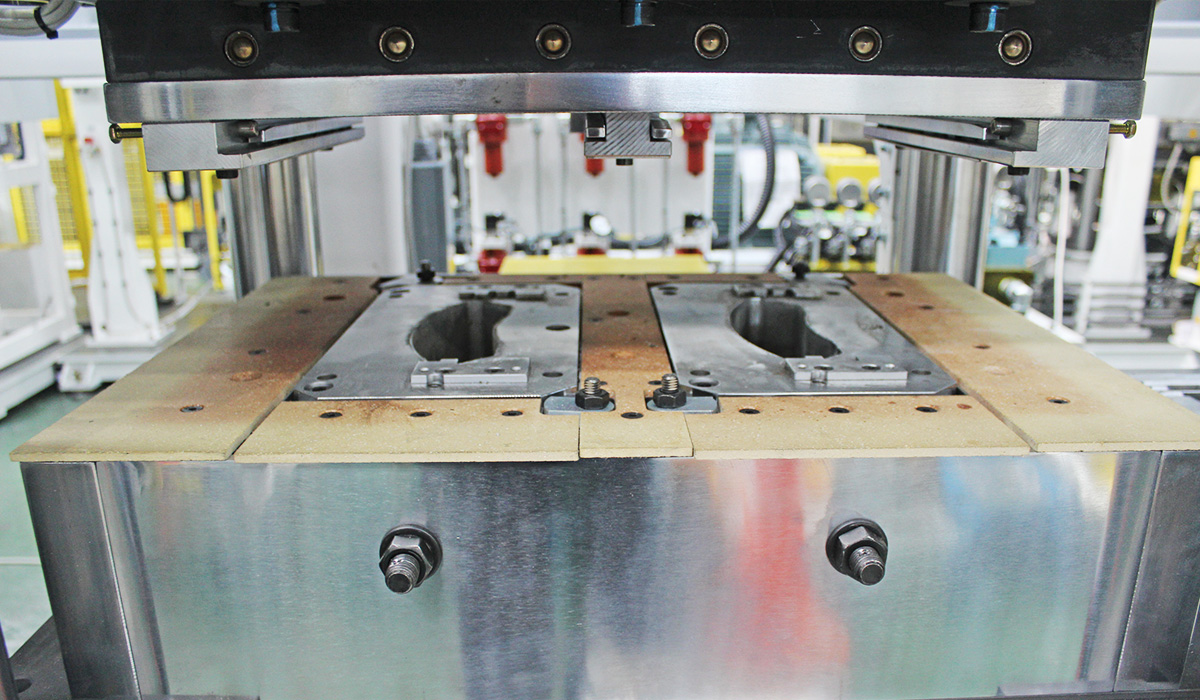

Product Image
